The DNA6000 Vector Network Analyzer is designed to support both laboratory environments and production lines. Its robust benchtop design ensures stable and dependable measurements, making it well suited for extended and repetitive testing applications. From troubleshooting prototypes in R&D to performing quality control during manufacturing, the analyzer precisely evaluates the performance of components such as filters, amplifiers, and cables. With a wide range of connectivity options, it also enables straightforward integration into automated test setups, helping streamline everyday testing workflows.
Rigol DNA6000
Vector Network Analyzer
ports
4
Frequency Range
5 kHz ~ 26.5 GHz
Connector
3.5mm (m)
Downloads
In Stock
Explore the DNA6000 Series Vector Network Analyzer
Broad Frequency Range for Diverse Applications
With a frequency range spanning from 5 kHz to 26.5 GHz and available in 2-port or 4-port configurations, this analyzer supports a wide variety of testing needs. It enables precise measurements across applications ranging from basic passive component characterization to dielectric constant analysis of materials and evaluation of high speed interconnect performance.
Superior Performance and Stability
Benefit from accurate and reliable measurements thanks to a wide dynamic range exceeding 120 dB and exceptionally low trace noise. This performance ensures stable results even when evaluating high suppression devices, allowing for precise and consistent characterization across demanding test conditions.
Advanced Analysis Tools Built In
Speed up your testing workflow with a comprehensive set of integrated analysis tools, including Pass/Fail limit testing, SWR measurements, Smith charts, and TDR capabilities. These built in features support efficient troubleshooting and accurate evaluation, making the analyzer equally effective in both laboratory research and production environments.
True Device Performance Through De-embedding
Evaluate the actual performance of your device under test. Fixture removal and de-embedding capabilities eliminate measurement errors introduced by cables, adapters, and test fixtures, allowing you to obtain the true S parameters required for accurate analysis.
Intuitive Calibration
Simplify the calibration process with a clear, step by step Calibration Wizard that removes uncertainty. The guided workflow helps users of all experience levels quickly complete accurate calibration and prepare the system for reliable measurements within seconds.
Mechanical or Electronic Calibration
Select the calibration method that best fits your workflow. Durable mechanical calibration kits deliver proven precision, while Electronic Calibration (E-Cal) modules provide fast, consistent calibration with minimal setup time, helping maximize overall testing efficiency.
Complete Accessory Support
Start testing quickly with a comprehensive range of compatible accessories designed to support your setup. This complete ecosystem provides everything needed for reliable and efficient measurements, offering a convenient one stop solution for your testing requirements.
Drop-In Compatibility

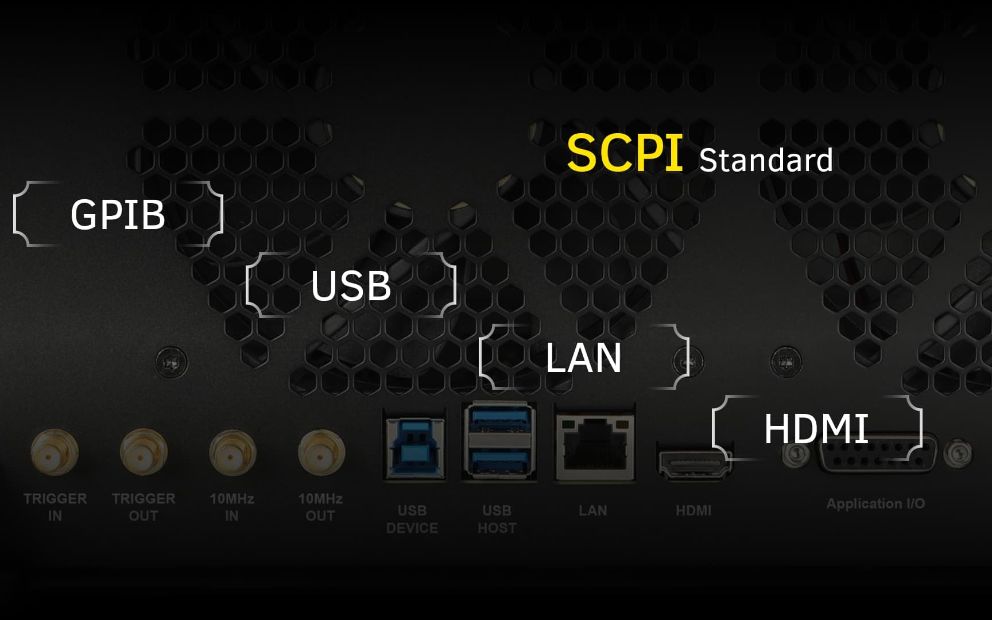

Upgrade your test setup with ease. Thanks to standard SCPI support and compatible command sets, this unit can be integrated into existing automated test systems without the need to rewrite code, enabling a smooth and efficient system upgrade.
DNA6000
| Model | Ports | Frequency Range | Connector | Price |
|---|---|---|---|---|
| DNA6264 | 4 | 5 kHz ~ 26.5 GHz | 3.5mm (m) | Get a Quote |
| DNA6262 | 2 | 5 kHz ~ 26.5 GHz | 3.5mm (m) | Get a Quote |
| DNA6204 | 4 | 5 kHz ~ 20 GHz | 3.5mm (m) | Get a Quote |
| DNA6202 | 2 | 5 kHz ~ 20 GHz | 3.5mm (m) | Get a Quote |
| DNA6144 | 4 | 5 kHz ~ 14 GHz | N (f) | Get a Quote |
| DNA6142 | 2 | 5 kHz ~ 14 GHz | N (f) | Get a Quote |
| DNA6084 | 4 | 5 kHz ~ 8.5 GHz | N (f) | Get a Quote |
| DNA6082 | 2 | 5 kHz ~ 8.5 GHz | N (f) | Get a Quote |
