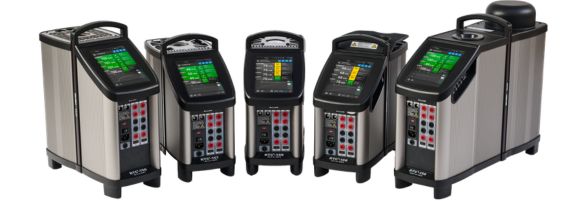

Ametek – RTC Reference Temperature Calibrator

The RTC Series represents the pinnacle of portable temperature calibrators, engineered for professionals demanding excellence in temperature calibration. Designed for industries such as pharmaceuticals, food processing, and industrial manufacturing, the RTC Series delivers the widest temperature range and unparalleled accuracy. With patented Dynamic Load Compensation (DLC) technology, the RTC Series ensures optimal temperature uniformity, even when calibrating multiple or large sensors simultaneously, setting a new benchmark in precision calibration.

Download our white paper: “A Practical Guide for Calibration of Sanitary Sensors” [here].

Key Features of the RTC Series

Innovative Dual- and Triple-Zone Temperature Control

• Provides superior temperature homogeneity with active dual- and triple-zone control for unmatched stability.
• Maintains uniformity across the calibration zone, ensuring exceptional accuracy for a variety of sensor calibrations.

RTC-168: Combination Dry-Block and Wet-Bath Calibrator

• Combines dry-block and wet-bath calibration methods in one portable unit.
• Features a faster magnetic stirrer for improved liquid uniformity and a removable container for seamless mode switching.
• Accommodates large flange sensors up to 84 mm in diameter, ideal for challenging sanitary sensor calibration.

Enhanced Design for Large and Sanitary Sensors

• Special sanitary sensor insert ensures contamination-free calibration.
• Unique airflow system protects sensors under test.
• Compact, portable design with screw-on lids for easy transport and setup, streamlining on-site calibration.

Wide Temperature Range and High Accuracy

• Covers a broad range from -100 to 700°C (-148 to 1292°F) across seven models.
• Offers accuracy up to ±0.04°C and stability to ±0.005°C.
• Fast heating and cooling capabilities save time and boost productivity.

User-Friendly Interface and Advanced Functionality

• Features a multilingual interface with an intuitive, easy-to-read color display.
• Supports “Plug and Play” intelligent reference sensors.
• Includes JofraCal Calibration Software for comprehensive data management and reporting.
• Offers multi-hole insert kits and thermocouple calibration inputs for greater flexibility.

The RTC Series combines innovation, precision, and ease of use, making it the ideal solution for professionals in need of reliable, high-performance temperature calibration.
